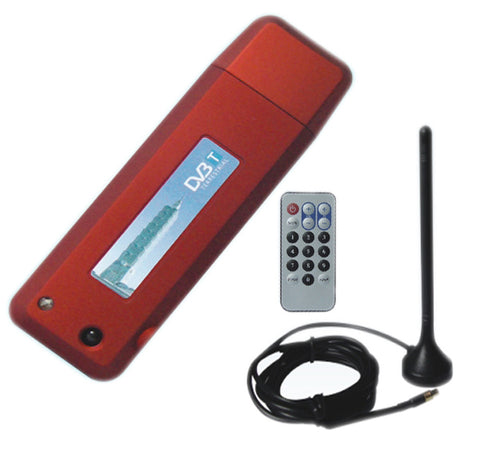

Compact Pen Size USB DVB-T DTV Receiver

Excellent DTV Viewing on Microsoft Windows; Real Time and Scheduled DTV Program Recording (DVR); Supports DVB Protocol (ETS 300 744); Auto-Select 6.7 and 8MHz Channel Bandwidth; Multi channel preview matrix. Upgrade your PC or laptop to a Digital TV / Terrestrial TV / FM Radio with this simple to use mini USB adapter. (DVB-T, not for USA. OK for Europe, Australia etc)

Specifications

• Compatible USB 1.1 Bus
• Support HDTV and SDTV
• Excellent DTV Viewing on Microsoft Windows
• Powered by USB－Adapter Free
• Full DVB-T and Nordig ⅡStandards Compliant
• Auto-Select 6.7 and 8MHz Channel Bandwidth
• Real Time and Scheduled DTV Program Recording
• Time-Shift Functionality
• Multi channel preview matrix
• Multi-language
• Favorite List
• Snapshot

Technical Parameters

• Standard: ETS 300 744 DVB-T &Nordic ⅡCompliance
• Interface: USB 1.1
• Modulation/Demultiplexing: 16 QAM/64 QAM/Software
• Video Resolutions: 352×240,352×288,480×480,480×576,704×480, 704×576,720×480(NTSC),720×576(PAL)
• Input Data Rate: Up to 31.67 Mbps
• Video Decidubg: MPEG-2 software decoder
• Video Bit Rate: CBR and VBR,12Mbps(depending on the PC configuration)
• Output Voltage/Impedance: 1V/75ohm
• Picture Aspect Ratio: 4:3 or 16:9
• Videotext: Teletext
• Electronic Program Guide: 1000EPG programs(max)
• Program Memory: At least 21(depends on the region)
• Upgradeable: Yes
• Audio Decoding: MPEG Layer 1 and Layer 2
• Sampling Rate: 32 KHz, 44.1KHz, 48KHz
• Input Frequency Band: Full 48～862MHz Frequency Range for VHF and UHF
• Channel Bandwidth: 6,7,8MHz
• Carrier Type: 2K/8K FFT for SFN/MFN
• Modulation: QOSK,16 QAM or 64 QAM Constellations
• Type of Carrier: 2K/8K
• Guard Interval: 1/4,1/8,1/16,1/32
• Code Rate: 1/2,2/3,3/4,5/6,7/8
• Output level/Impedance: Range: -20 to -85 dBm@64 QAM/75
• EEProm: Yes
• IF input: Yes
• Subtitles: Teletext (Not compatible with UK teletext)
• Power Supply: 5V DC
• Power Consumption(Normal): 1.6W @ 5V/320mA
• Power Consumption(Standby): 0.3W @ 5V/60mA
• Temperature While Operating: 0 deg C to 55 deg C, Storage: -20 deg C to 70 deg C

System Requirement

• 866MHz CPU or above Notebook or Desktop PC
• 256 MB RAM or above
• VGA Card with at least 8MB memory
• Sound Card
• USB 1.1 port
• Microsoft Windows XP SP2 or Windows 2000 SP4
• Microsoft Directx 9.0c or above
• Cyberlink MPEG-2 Decoder
• Digital Terrestrial Antenna
